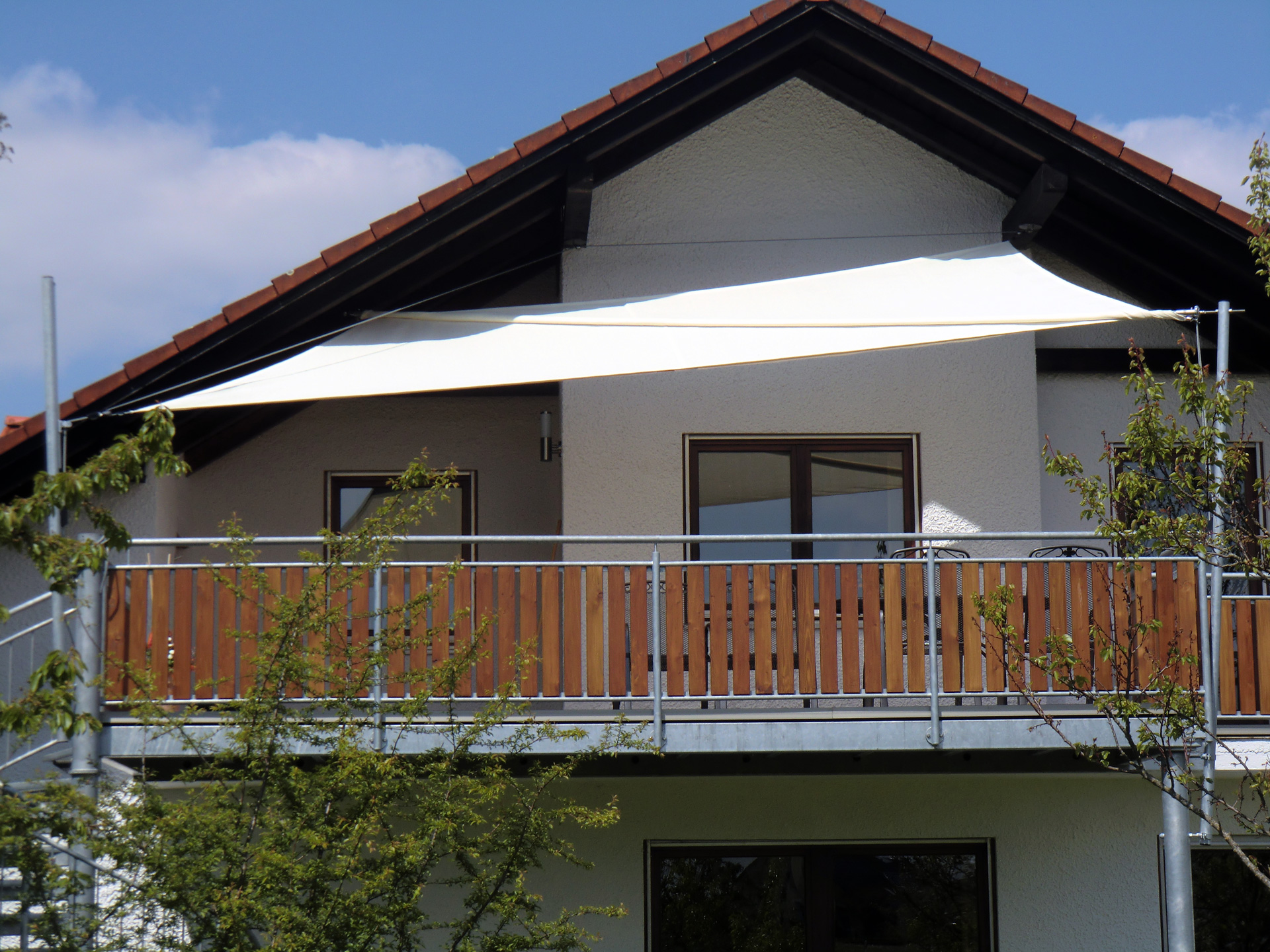

Balcony, terrace or rooftop terrace awnings
Flexible in shape and colour –
as individual as your requirements.
as individual as your requirements.
Whether it’s for a maritime, Mediterranean or a central European climate:
we’ll find the optimum materials for you.
Ensuring the reliable everyday use of your awning.
Flexible in shape and colour – as individual as your requirements.
Permanently fixed
Retract manually or fully automatically
Production of the required support structure such as pergolas, parapets and a great deal more

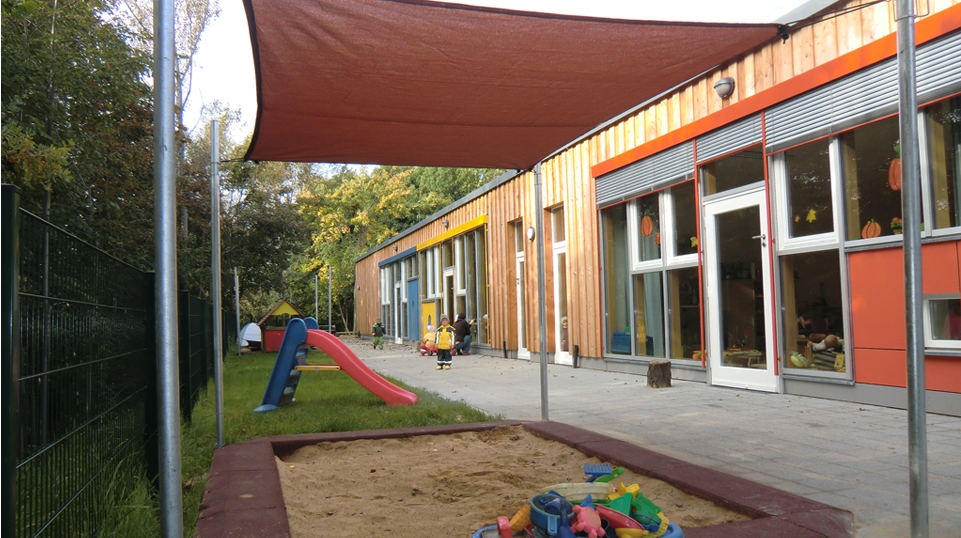

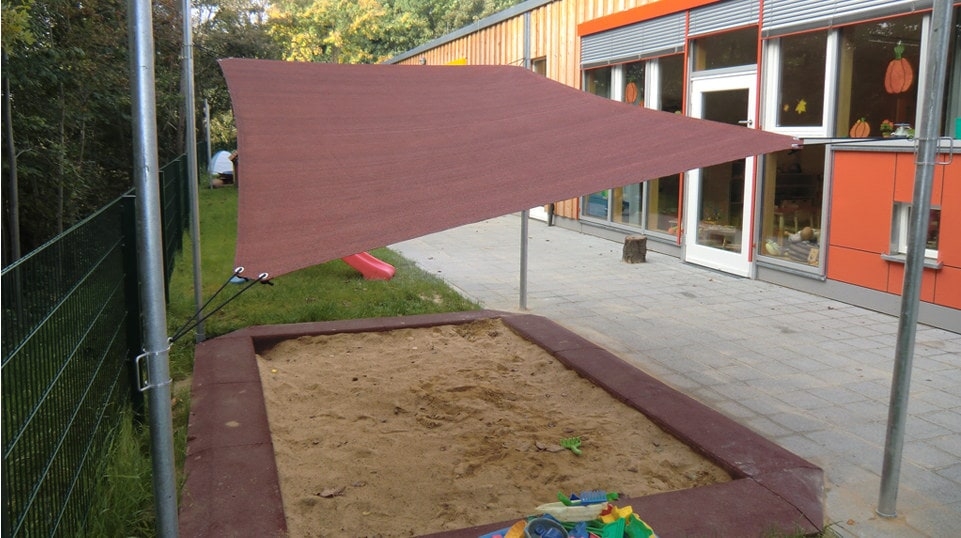

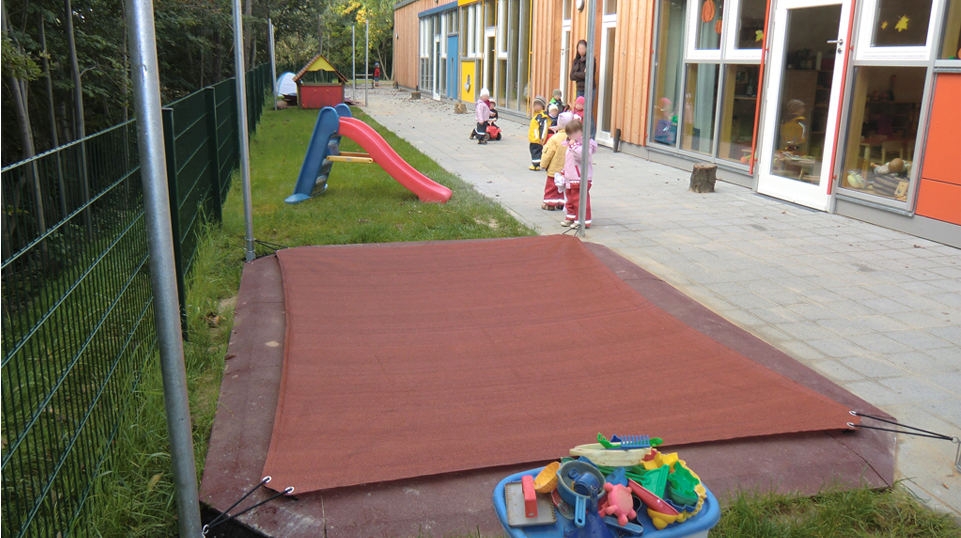

Sandpit and playground awnings
Quick and easy to operate –
from sunshade to cover in a jiffy.
from sunshade to cover in a jiffy.
Versatile in their functions – ideal for all play areas.
So you don’t have to worry while your little ones enjoy long, hot summer days outdoors.
Also suitable for swimming pools or garden ponds.
Textile fabrics for classic awnings
ShadeNet 230 – the classical awning (waterproof to an extent)
PE monofilament / tape net, 230g / m2, UV 300 Kly (All data are average values only to be used for reference)
Fabric
| Type: | knitted |
| Raw material warp/weft: | HDPE |
| Additives warp/weft: | UV stabiliser C2020 |
| Yam count warp/weft: | 400/380 Denier |
| Construction warp/weft: | 6/17 inch² |
Properties
| Total weight: | 230g/m² |
| Tensile strength warp/weft: | 475/1500 N per 5cm |
| Tear strength warp/weft: | 140/60 N |
| Temerature resistance: | -40/+80°C |
Colours and materials:
the on-screen display may vary slightly from the original colour shade
WeatherMAX 80 – the premium material for protection from sun and rain (waterproof)
WeatherMAX® made of yarn-dyed Satura maxTM fibre. This yarn is a technical polymer with outstanding UV-resistant properties, ensuring enduring colour-fastness and strength.
The term ‘waterproof’ denotes products that shelter from rain.
HydroMAX Finish increases the waterproofing level, providing excellent results in terms of water and mould resistance without affecting the breathability features of the fibre.
WeatherMAX® is characterised by extreme tear and crease resistance.
| Fiber: | 100% Spinnerets Colored Satura maxTM yarn |
| Thread: | solution-dyed Satura maxTM yarn |
| Finish: | HydromaxTM |
| Weight: | ca. 270 g/m² |
| Tear strength: | Chain 200daN / 5cm |
| Width: | approximately 150cm |
| Roll length: | approximately 69m |
Colours and materials:
the on-screen display may vary slightly from the original colour shade
Tweed Line
Linen Line
All textile fabrics are processed and assembled to customer specifications, and meet both functional and architectural requirements.
Soltis 86/92/Air/Stretch
for retracting systems and fixed awnings
polyester, coated
provides protection from sun and rain
380 – 500 g/m²
polyester, coated
provides protection from sun and rain
380 – 500 g/m²
MasAcril
for fixed awnings
acrylic fibre, PU coated
provides protection from sun and rain
300-320 g/m²
acrylic fibre, PU coated
provides protection from sun and rain
300-320 g/m²
Nylons
for fixed sails, locally fixed awnings
strong nylon fabric, PU coated
provides protection from sun and rain
110-205 g/m²
strong nylon fabric, PU coated
provides protection from sun and rain
110-205 g/m²
Classical sailcloth
polyester, single colour, neutral
for retracting systems and locally fixed awnings
provides protection from sun and rain
up to 150 g/m²
for retracting systems and locally fixed awnings
provides protection from sun and rain
up to 150 g/m²
Available sail shapes for classic awnings
Anchoring for classic awnings
Whether it’s free-standing awning installations or specially developed systems for courtyards, facades, inner or outer corners of buildings – we’ll find the best way of attaching your awning system.
Some typical examples:
free standing
corner
courtyard
facade
inside corner
