SPM, SPL and SPL-XL – Manually retracting awning systems
Awnings sized up to 80m²
Our SPS, SPM and SPL manually retractable awning systems are manufactured from premium-quality materials, which means long product life and precision functioning.
SPM

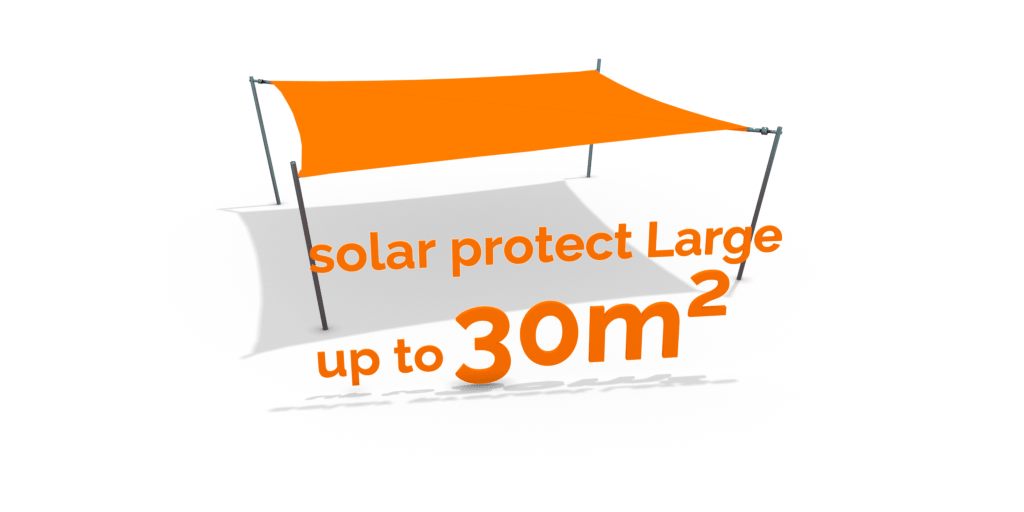

SPL
SPL-XL
Our innovative system components enable almost unlimited possibilities for application in a range of localities, together with great flexibility in the design of awning geometry.
Using the height adjustment mechanism you can also provide the required shade even when the sun is low in the sky, especially late in the afternoon.
The awning is positioned at the required height by means of a slide rail installed on the pole, enabling fast and variable height adjustment to whatever height the sun may be.
Awning fabric for manually retracting awnings
ShadeNet 230 – the classical awning (waterproof to an extent)
PE monofilament / tape net, 230g / m2, UV 300 Kly (All data are average values only to be used for reference)
Fabric
| Type: | knitted |
| Raw material warp/weft: | HDPE |
| Additives warp/weft: | UV stabiliser C2020 |
| Yam count warp/weft: | 400/380 Denier |
| Construction warp/weft: | 6/17 inch² |
Properties
| Total weight: | 230g/m² |
| Tensile strength warp/weft: | 475/1500 N per 5cm |
| Tear strength warp/weft: | 140/60 N |
| Temerature resistance: | -40/+80°C |
Colours and materials:
the on-screen display may vary slightly from the original colour shade
WeatherMAX 80 – the premium material for protection from sun and rain (waterproof)
WeatherMAX® made of yarn-dyed Satura maxTM fibre. This yarn is a technical polymer with outstanding UV-resistant properties, ensuring enduring colour-fastness and strength.
The term ‘waterproof’ denotes products that shelter from rain.
hydroMAX Finish increases the waterproofing level, providing excellent results in terms of water and mould resistance without affecting the breathability features of the fibre.
WeatherMAX® is characterised by extreme tear and crease resistance.
| Fiber: | 100% Spinnerets Colored Satura maxTM yarn |
| Thread: | solution-dyed Satura maxTM yarn |
| Finish: | HydromaxTM |
| Weight: | ca. 270 g/m² |
| Tear strength: | Chain 200daN / 5cm |
| Width: | approximately 150cm |
| Roll length: | approximately 69m |
Colours and materials:
the on-screen display may vary slightly from the original colour shade
Tweed Line
Linen Line
Available sail shapes for manually retracting awnings
Anchoring for manually retracting awnings
Whether it’s free-standing awning installations or specially developed systems for courtyards, facades, inner or outer corners of buildings – we’ll find the best way of attaching your awning system.
Some typical examples:
Warning: "continue" targeting switch is equivalent to "break". Did you mean to use "continue 2"? in /var/www/vhosts/solarprotect.de/httpdocs/web/test.solarprotect.de/wp-content/themes/jupiter/components/shortcodes/mk_imagebox/show-as/column.php on line 20
free standing
corner
courtyard
facade
inside corner
